Hankinson Filtration

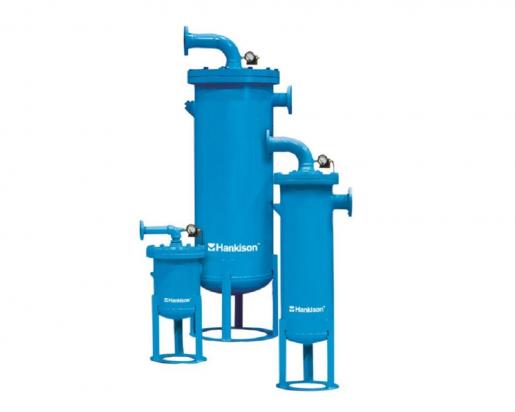

M Series




Hankison M Series Mist Eliminators protects products and processes from contamination and increases the life of pneumatic equipment. M Series is an auditors choice to reduce energy costs and remove oil and water aerosols from compressed air systems.

Removes submicronic particles for ultra clean air:

- 100% of particles 3 microns and larger
- 99.98% of particles 0.1 micron and larger
- 0.5 ppm w/w maximum liquid content after filtration
- 1000 ppm maximum inlet liquid loading
- Low pressure drop: 0.5 to 1 psi (0.04 to 0.07 kgf/cm2)
- Long element life: 8 to 15 years
- Virtually maintenance free

Extra protection:

- Captures and retains large slugs of oil and water, should drain trap fail
- Protects downstream equipment from contamination should oil separator on rotary screw compressor fail

Standard Features:

- 5 year equipment warranty
- 5 year element life guarantee
- Differential pressure gauge mounted and piped
- Heavy duty ASME stamped pressure vessel
- Long life mist eliminator element
- Floor stand
- Dedicated vent port for demand type drains
