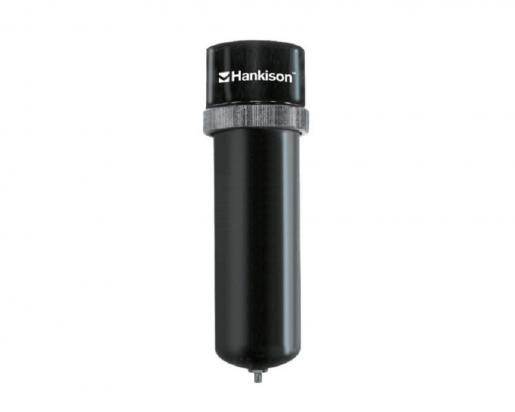

HTA Series




Hankison HTA Series high temperature afterfilters are designed to hold a large amount of desiccant fines without plugging. The result is long cartridge life, even when installed downstream of heated type dryers using highly friable desiccant.

Compressed air leaves a desiccant dryer containing dust concentrations typically in the range of up to 0.05ppm by weight in heatless type dryers and up to 5 ppm by weight in heated type dryers. Particle size ranges from 200 microns to about 1 micron. This desiccant laden compressed air enters the filter housing where a reduction in air velocity and a sharp change of direction cause particles in the range of 200 to 20 microns to drop to the bottom of the housing.

- High dust loading capacity
- Long cartridge life
- Good for temperatures to 450°F (232°C)
- Removes all solid particles one micron and larger
