Hydrolic Drive Compressor

Rotary Screw

Infinity 185


Infinity 185

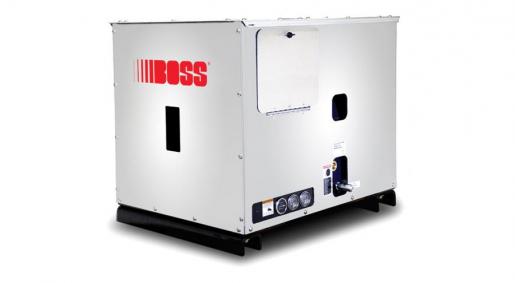

The BOSS INFINITY 185 (p/n 10192-001) advanced design allows you the option to choose any CFM output up to 185 CFM with just one model. By simply adjusting the hydraulic flow, the compressor system will produce up to 185 CFM at 110 PSIG continuously. Now, when you need that extra boost, you have it.


The BOSS Infinity 185 modular unit is fully self-contained and compact. Mounted on its own frame the unit measures only 26" W x 31 1/8" H x 35 ¼ L. The compact design makes mounting possible even in tight spaces.

Installation is simple too. Just attach the unit to the deck of you vehicle, connect your hydraulic system, wire to a 12V source and you are ready to go.


Specifications

Delivery @ 110 psig (CFM) 125 160 185
Hydraulic Fluid Required @ 2200 psig (GPM) 29.4 38.0 43.8
Input Speed to Compressor (RPM) 1450 1875 2160
Fluid Capacity (gal) 3
Compressor Module Dimensions 26.7" W x 30.87" H x 25.25" L
Wet Weight (lbs) 700
